Summary Info

Configuration

Purpose	To summarise time series data values in side-by-side columns, by specific time intervals.
Example	To show the most recent and various accumulated electricity consumption data for predefined time periods.

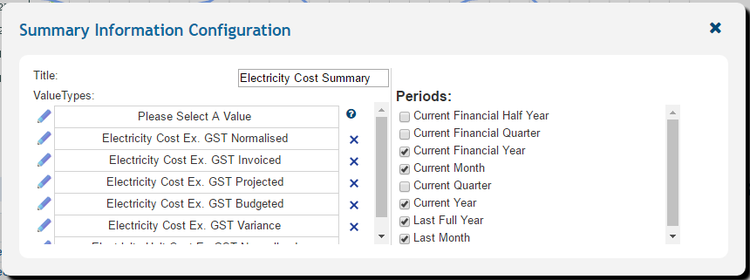

Settings	Description	Values
Title	Control display title	Custom
Value types	Values to be reported in table	All time series data values
Periods	Defines time-step for data aggregation	Current financial half year (half year to date) Current financial quarter (quarter to date) Current financial year (year to date) Current Month Current (calendar) quarter Current (calendar) Year Last full year (the 12 months previous to the current month) Last month

Usage

The summary info control has no interactive usage features.

---
